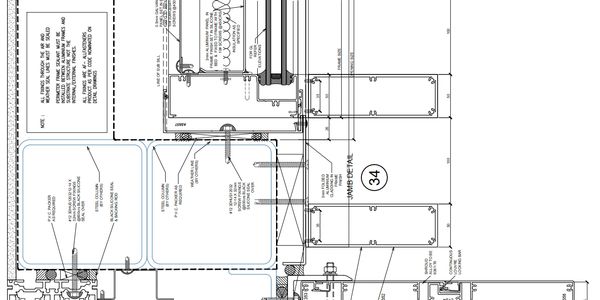

Facade Drafting & Shop Drawings

ARD Drafting provides over 20 years’ experience in the Aluminium and Glazing Design, Façade Construction Drafting & Shop Drawings.

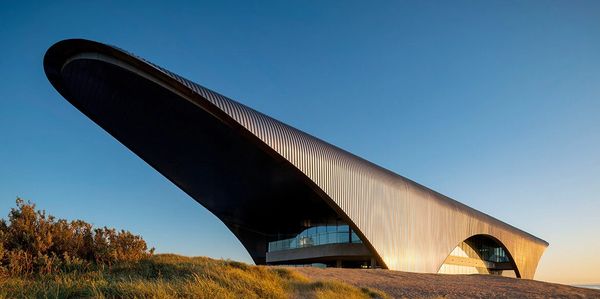

Having worked on numerous medium to large scale commercial and residential projects, we are proud to have an exemplary track record for delivering successful award-winning projects across Australia.

We integrate architectural and structural designs into clear, accurate 2D and 3D construction models, ensuring precise drawings ready for construction. This combination streamlines project coordination, reduces errors, and simplifies the construction process.

Offering expert drafting in a wide range of façade and glazing systems, curtain walls, window walls, aluminium window suites, internal glazed partitions, frameless glazing systems, automatic doors, aluminium cladding, custom facades, and trafficable skylights.

We ensure precise, detailed designs that balance aesthetic appeal with functionality, providing tailored solutions that meet the specific needs of your project.

We pride ourselves in establishment of quality shop detailing of an extensive range of aluminium and glass structures to suit all commercial and residential projects.

ARD Drafting is pleased to offer you our professional and accurate service- provided in timely manner with very competitive pricing.
